Small size mini bearing single row low noise deep groove bearing 624-2RS 4x13x5mm
Description:
| Model | 624-2RS |
| Bearing material | GCr15/AISI52100/100Cr6 |
| ID*OD*W (mm) | 4x13x5mm |
| Seal type | open,double seals,double shields |
| Lead time | Stock or 15-30days |
| Weight(kg) | 0.0031 |
| Basic dynamic load ratings/C | 0.936kN |
| Basic static load ratings/C0 | 0.29kN |
| Limiting speed | 67000 r/min |
| Clearance | C2,C0,C3,C4,C5 |
| Viberation Level | V1,V2,V3,V4 |
| Precision Rating | P0,P6,P5, |
| MOQ | 1 PCS |
| Port | Shanghai |
| Grease | Mobil polyrex EM,Kyodo Yushi SRL |
| Payment terms | T/T, L/C |
Photo:

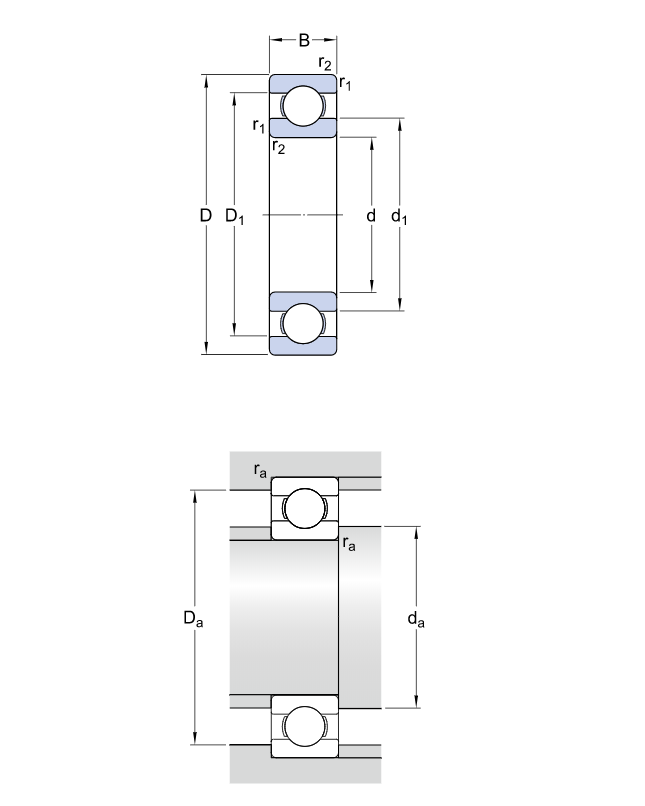

Drawing:
| More Information |
| d | = | 90 |
| D | = | 115 |
| B | = | 13 |
| Dynamic Load | = | 19.5 kn |
| Static Load | = | 22 kn |
| Pu | = | 0.915 |
| Reference Speed | = | 11000 rpm |
| Limiting Speed | = | 7000 rpm |
| kg | = | 0.28 |
| d1 | = | 98.2 |
| D1 | = | 107 |
| D2 | = | n/a |
| r1r2 min | = | 1 |
| da min | = | 94.6 |
| Da max | = | 110 |
| ra max | = | 1 |
| Calc Factor kr | = | 0.015 |
| Calc Factor Cor | = | 17 |
Specification:
1. High precision bearings
2. ISO standard bearing
3. High quality and competitive price
4. Many famous brands can be available
5. Low noise and long life

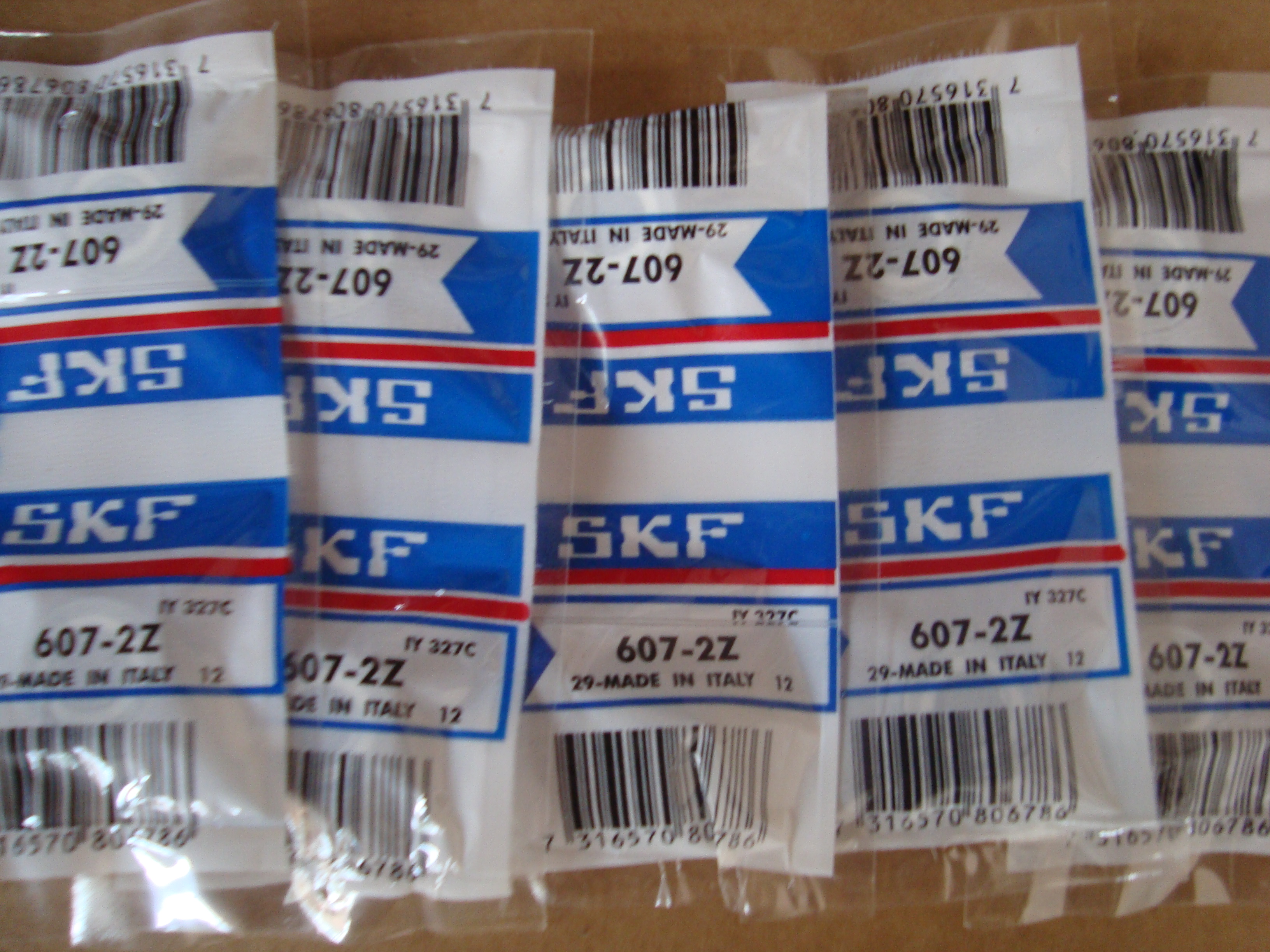

Packaging & shipping;
Packaging Details
1, Industry packaging: Plastic tube + Carton + pallet
2, Commercial packaging: Single color box+Carton+pallet
3, According to the requirement of customers'
Payment terms :
1). 30%T/T in advance, 70% balance has to be paid before first shipment.
2). 100% L/C at sight
3). Other payment terms depend on our discussion
Series Model:
| Bearing | Dimensions(mm) | Weight (kg) | Bearing No. | Dimensions(mm) | Weight(kg) |
| No. |
| | d | D | B | d | D | B |
| |
| 6200 | 10 | 30 | 9 | 0.014 | 6300 ZZ | 10 | 35 | 11 | 0.052 |
| 6201 | 12 | 32 | 10 | 0.036 | 6301 ZZ | 12 | 37 | 12 | 0.059 |
| 6202 | 15 | 35 | 11 | 0.044 | 6302 ZZ | 15 | 42 | 13 | 0.082 |
| 6203 | 17 | 40 | 12 | 0.065 | 6303 ZZ | 17 | 47 | 14 | 0.109 |
| 6204 | 20 | 47 | 14 | 0.102 | 6304 ZZ | 20 | 52 | 15 | 0.142 |
| 6205 | 25 | 52 | 15 | 0.125 | 6305 ZZ | 25 | 62 | 17 | 0.260 |
| 6206 | 30 | 62 | 16 | 0.202 | 6306 ZZ | 30 | 72 | 19 | 0.310 |
| 6207 | 35 | 72 | 17 | 0.285 | 6307 ZZ | 35 | 80 | 21 | 0.453 |
| 6208 | 40 | 80 | 18 | 0.370 | 6308 ZZ | 40 | 90 | 23 | 0.636 |
| 6209 | 45 | 85 | 19 | 0.404 | 6309 ZZ | 45 | 100 | 25 | 0.825 |
Deep groove ball bearing ball type:
1.single row deep groove ball bearing(open)
2.single row deep groove ball bearing with dust cover
3.single row deep groove ball bearing with seal ring
4.single row deep groove ball bearing with snap ring
5.single row deep groove ball bearing has filled the ball gap
6.double row deep groove ball bearing
Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
