Slim / Thin 6800 2RS Double Shielded Ball Bearing In Stock With Long Life

Name: Slim Thin 6800 2RS Double Shielded Ball Bearing In Stock With Long Life
Brand: YGB,OEM,SKF,NTN
Price: 1 USD

Slim / Thin 6800 2RS Double Shielded Ball Bearing In Stock With Long Life Manufactures

Brand Name : YGB,OEM,SKF,NTN

Model Number : 6800- RS

Certification : ISO9001:2008

Place of Origin : China,Wuxi

MOQ : 1 pcs

Price : Negotiable

Supply Ability : 10000pcs/day

Delivery Time : Stock or 15-30days

Packaging Details : plastic tube+individual box+carton

Model : 6800- RS

Size : 10x19x5mm

Number of Row : single

Clearance : C2,C0,C3,C4,C5

Viberation Level : V1,V2,V3,V4

Precision Rating : P0,P6,P5,

Contact Now

6800 2RS Bearings 10x19x5 Slim / Thin Bearing Double Shielded Ball Bearing With Long Life

Description :

Model	6800- RS
Bearing material	GCr15/AISI52100/100Cr6
IDODW (mm)	10x19x5mm
Weight(kg)	0.005kg
Seal type	double shields
Lead time	Stock or 15-30days
Clearance	C2,C0,C3,C4,C5
Viberation Level	V1,V2,V3,V4
Precision Rating	P0,P6,P5,
MOQ	No MOQ
Port	Shanghai
Grease	Mobil polyrex EM,Kyodo Yushi SRL
Payment terms	T/T, L/C

Features:
1. Simple Design, be convenient when using
2. Low Friction coefficient
3. High limit speed
4. Short delivery time
5. Large stock

Payment
1: T/T: 30% as deposit and 70% balance after get copy of B/L.
2: L/C (cannot for branded bearings.)
3: Discuss together between buyer and supplier.

Details:

Slim / Thin 6800 2RS Double Shielded Ball Bearing In Stock With Long Life

Other Models:

Bearing	Bore		Outer Diameter		Width		Load Rating (KN)		Steel Ball Parameter		Max Speed		Weight
NO	d		D		B		Dynamic	Static	NO	Size	Grease	Oil	(Kg)
	mm inch		mm inch		mm inch		Cr	Cor	NO	mm	r/min	r/min
6000	10	0.3937	26	1.0236	8	0.315	4.55	1.95	7	4.763	29000	34000	0.019
6001	12	0.4724	28	1.1024	8	0.315	5.1	2.39	8	4.763	26000	30000	0.022
6002	15	0.5906	32	1.2598	9	0.3543	5.6	2.84	9	4.763	22000	26000	0.03
6003	17	0.6693	35	1.378	10	0.3937	6.8	3.35	10	4.763	20000	24000	0.039
6004	20	0.7874	42	1.6535	12	0.4724	9.4	5.05	9	6.35	18000	21000	0.069
6005	25	0.9843	47	1.8504	12	0.4724	10.1	5.85	10	6.35	15000	18000	0.08
6006	30	1.1811	55	2.1645	13	0.5118	13.2	8.3	11	7.144	13000	15000	0.12
6007	35	1.3779	62	2.4409	14	0.5512	16	10.3	11	7.938	12000	14000	0.16
6008	40	1.5748	68	2.6772	15	0.5906	16.8	11.5	12	7.938	10000	12000	0.19
6009	45	1.7716	75	2.9528	16	0.6299	21	15.1	12	8.731	9200	11000	0.25
6010	50	1.965	80	3.1496	16	0.6299	21.8	16.6	13	8.731	8400	9800	0.26
6011	55	2.1653	90	3.5433	18	0.7087	28.3	21.2	12	11	7700	9000	0.39
6012	60	2.362	95	3.74	18	0.7087	29.5	23.2	13	11	7000	8300	0.42
6013	65	2.559	100	3.937	18	0.7087	30.5	25.2	13	11.11	6500	7700	0.44
6014	70	2.7559	110	4.3307	20	0.7874	38	31	13	12.3	6100	7100	0.6
6015	75	2.9528	115	4.5276	20	0.7874	39.5	33.5	14	12.3	5700	6700	0.64
6016	80	3.1496	125	4.9213	22	0.8661	47.5	40	14	13.49	5300	6200	0.85
6017	85	3.3465	130	5.1181	22	0.8661	49.5	43	14	14	5000	5900	0.89
6018	90	3.5433	140	5.5118	24	0.9449	58	49.5	14	15.08	4700	5600	1.15
6019	95	3.7402	145	5.7087	24	0.9449	60.5	54	14	15.08	4500	5300	1.2
6020	100	3.937	150	5.9055	24	0.9449	60	54	14	16	4200	5000	1.2

Related Products:

Deep groove ball bearings
Cylindrical roller bearings
Needle roller bearings
Thrust ball bearings
Thrust roller bearings
Spherical roller bearings
Angular contact ball bearings

Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.
We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected. Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at the time of delivery. We will not refund shipping charges for refused shipments.
The shipping cost does not include any import taxes, and buyers are responsible for customs duties.

Returns:
We do our best to serve our customers the best that we can.
We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
The buyer will be responsible for the shipping fees to return the items.

Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!

Product Tags:

deep groove double row ball bearing

deep groove roller bearing

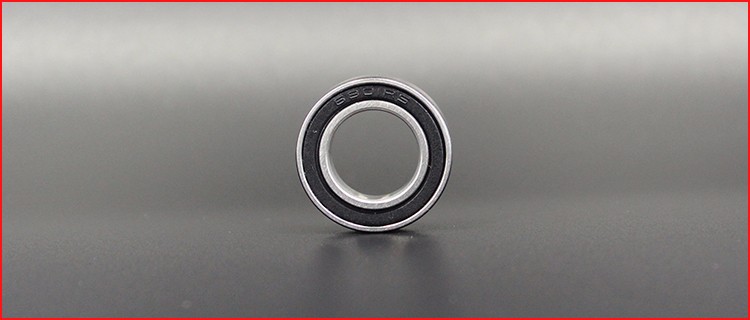

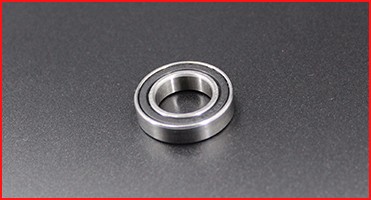

Slim / Thin 6800 2RS Double Shielded Ball Bearing In Stock With Long Life Images
